omniCOOL: Introducing a unique approach to fan design

The rise of IoT and Cloud data services has put data centers, housing powerful servers and storage devices at the forefront of the electronics industry. It is also a well-known fact that these data centers generate enormous amounts of heat, which has to be removed from critical equipment—a task that usually starts with a fan.

The same holds true for other applications that we depend on. Products such as home computers, household appliances and industrial machinery will only function reliably if they are kept within a specified temperature range. In other words, fans play an incredibly important role in modern life.

The sleeve bearing vs ball bearing trade-off

At the core of every fan is the bearing. This critical component enables the fan rotor to turn and is key in determining a fan’s operational life, making it crucial for designers and engineers to choose the right fan bearing to cool their application.

Traditionally, this choice has been between a fan with a sleeve bearing and one with a ball bearing. Both have their strengths but picking one over the other will usually result in a trade-off somewhere along the line. This is why CUI has taken a new approach to bearing design that bridges the gap between ball and sleeve versions.

However, before we look at how this new fan design works, we must first review the benefits and shortcomings of the more traditional sleeve and ball bearing types.

Understanding sleeve bearings

The shaft at the center of sleeve bearing fans spins inside a “sleeve-like” cylinder with a layer of oil lining the sleeve that enables the shaft to turn. The sleeve’s role is to hold the rotor in the right position, making sure it is always the correct distance from the motor stator (Figure 1). Sleeve bearings are the more cost-effective of the two traditional designs and will hold-up better in applications that experience shock and vibration. However, its design does hold several drawbacks.

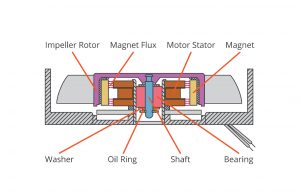

Figure 1: Diagram of a typical sleeve bearing fan

To minimize rotor wobble, the sleeve needs to fit snugly around the shaft, but the greater this contact area is, the more friction you have to overcome and the longer it takes to start the fan. This means more energy is required, both to start the fan and to keep it spinning.

Another issue with the sleeve design is the weight of the rotor is supported solely by the shaft in the sleeve. Consequently, as it rotates, it gradually wears down the inside of the bearing, distorting the shape of the bore. If your fan is always used in the same orientation, an oval-shaped sleeve cross-section will begin to develop, which may make the fan noisier and cause it to wobble.

This bearing wear problem can be worse if your fan is required to operate at different angles, as could be the case with portable equipment. With gravity pulling the rotor’s mass in different directions, depending on the angle of use, the sleeve will wear unevenly, which can exacerbate the wobble and noise problems.

Ultimately, this wear shortens the life of the bearing and, depending on your design, possibly the whole fan unit or even the product it is cooling.

Furthermore, the lubricant mentioned earlier that is required to keep everything rotating is typically provided by including an oil ring and Mylar washer at both ends of the bearing bore. These components are intended to combat friction, but the reality is their presence adds to it. In addition, their positioning makes it harder for the gases generated by rotational friction to escape. If these gases cannot dissipate, they turn into solid nitride particles, which clog up the bearing, hampering rotation and shortening its life.

The basics of ball bearings

Fans with ball bearings (Figure 2) typically have two rings of little steel balls surrounding the shaft, one closer to the rotor than the other. A ring of springs presses them apart. This setup helps tackle the issues of rotor tilt and uneven wear that you get with sleeve bearings. The reason for this is that the rotor’s weight rests on the ball bearing closest to the rotor itself, but the springs help offset any tilt that might occur as a result of gravity pulling down on the rotor. This means a fan with ball bearings can be used at any angle, making this design a superior choice for portable devices. The reduced bearing wear also means your mean time between failures (MTBF) will typically be much higher with a ball bearing-based design rather than with a sleeve variant.

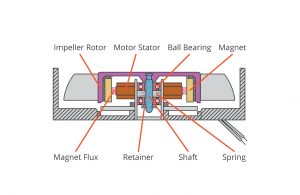

Figure 2: Diagram of a typical ball bearing fan

While ball bearings reduce the amount of friction you must overcome to start and operate your fan motor, they are costlier, noisier, more complex and less impact-resistant than sleeve bearings.

omniCOOL™ system: Bridging the gap

To minimize the need for designers to make tradeoffs when specifying a fan, CUI’s omniCOOL™ system (Figure 3) seeks to bridge the cost-performance gap by incorporating two key elements into fan design: a magnetic rotor-balancing structure and an enhanced sleeve bearing.

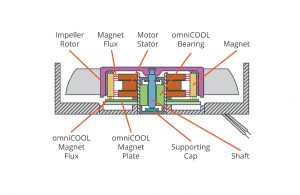

Figure 3: Diagram of CUI’s omniCOOL system

Thanks to the magnetic structure, the rotor effectively becomes a spinning top that never falls over and can work at any angle. This is because the system’s magnetic structure sits in front of the rotor and uniformly attracts it all the way round, no matter what angle the fan is operating.

A supporting cap at the tip of the shaft keeps it in place, forming the point around which the rotor spins, just like the point on a spinning top.

This approach, using the magnetic structure, means the rotor weight is not borne by the bearing sleeve, but by magnetic forces, which suspend the rotor in the air. This cuts down the friction between the inside of the bearing and the shaft. It also reduces the tilt and wobble problems found with traditional sleeve bearings.

Although the magnetic structure significantly reduces the amount of contact between the inside of the bearing and the spinning shaft, the omniCOOL system also includes a specially hardened sleeve to provide higher resistance against any abrasion that may still occur.  The enhanced sleeve design also provides heat-resistance up to 90°C, which is more than most sleeve bearings can tolerate. Testing shows that this enhanced, hardened bearing has a significantly longer expected operating life than a traditional sleeve bearing – 3.2 times longer at 70°C and as much as 5.5 times longer at 20°C (Figure 4).

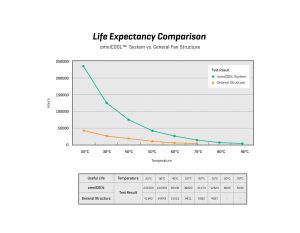

Figure 4: Comparing life expectancy of a traditional sleeve bearing and the omniCOOL system

The other key difference between the omniCOOL system’s enhanced bearing and a standard sleeve bearing is the absence of the oil rings and Mylar washers. With the magnetic forces reducing abrasion, lubricant is no longer required, so these components can be removed. Doing so reduces friction, which in turn cuts down on noise and the amount of energy required to start and spin the motor. It also means the gases generated by rotational friction are free to escape, instead of solidifying and blocking up the bearing.

A new alternative to traditional fan designs

The combination of technologies found in the omniCOOL system bridges the gap between ball and sleeve bearings, providing a quiet, strong, long-lasting fan that is suitable for use at any angle and more cost-effective than ball bearing designs.  For engineers, it provides a new alternative to cool electronic equipment without the traditional tradeoffs.
