Vishay Intertechnology Introduces New Series of Sulfur-Resistant Long Side Termination Thick Film Chip Resistors Devices Combine Advanced Sulfur Resistance With High Power Ratings to 2.0 W for Automotive and Industrial Applications

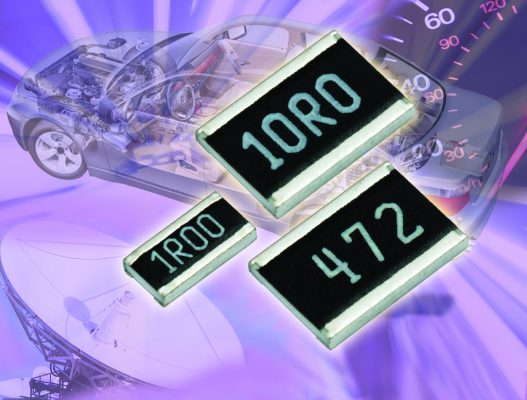

Vishay Intertechnology, Inc. (NYSE: VSH) today released a new series of sulfur-resistant long side termination thick film chip resistors optimized for automotive and industrial applications.

For high sulfur environments, resistors in the AEC-Q200-qualified Vishay Draloric RCA LS e3 series feature a patented construction that provides a sulfur withstand ability in accordance with ASTM B809 95, tested at an advanced level of 90 °C for 1,000 hours. The devices’ wide terminals enable high power ratings up to 2.0 W.

RCA-LS e3 series resistors are available in five compact case sizes to save space on densely packed PCBs: 0406, 0612, 1020, 1218, and 1225. The devices offer a resistance range from 1 Ω up to 2.2 MΩ with tolerances of ± 1 % and ± 5 %, TCR of ± 100 ppm/K and ± 200 ppm/K, and an operating voltage range from 50 V to 200 V. The resistors are RoHS-compliant and halogen-free.

Device Specification Table:

Part #   Case size          Power rating P70 (W)    Operating voltage (V)

RCA0406-LS e3  0406    0.25     50

RCA0612-LS e3  0612    0.5       75

RCA1020-LS e3  1020    1.0       200

RCA1218-LS e3  1218    1.0       200

RCA1225-LS e3  1225    2.0(1)   200

(1) Specified power rating requires dedicated mounting conditions to achieve the required thermal resistance.

Samples and production quantities of the RCA-LS e3 series are available now, with lead times of eight to 10 weeks. Pricing for U.S. delivery starts at $0.135 per piece.

# # #
