Low-height package products allow bufferless direct drive of low-to-medium-power IGBTs and MOSFETs from microcontrollers
TOKYO—Toshiba Corporation’s (TOKYO: 6502) Storage & Electronic Devices Solutions Company today announced the launch of a series of low-input current drive, rail-to-rail output, gate-drive photocouplers in a low-height package that allows bufferless direct drive of low- to medium-power IGBTs and MOSFETs from microcontrollers. Shipments of the three new products; “TLP5771”, “TLP5772” and “TLP5774” start from today.
With a threshold input current of 2mA (max), half the 4mA (max) of Toshiba’s existing products[1], the new photocouplers allow bufferless direct drive of low- to medium-power IGBTs and MOSFETs from microcontrollers. The new line-up is available in three levels of peak output currents, 1A, 2.5A and 4A, ensuring they meet a wide range of user requirements.

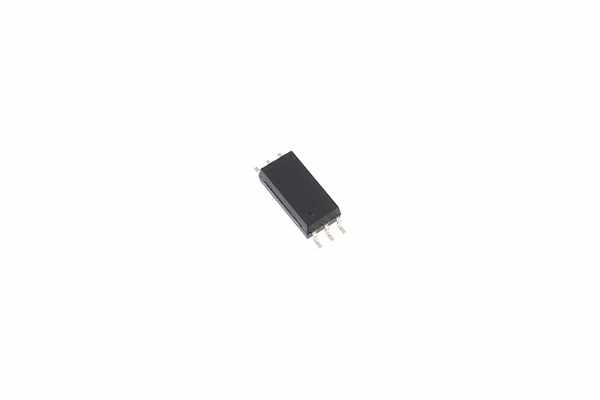

The new photocouplers have rail-to-rail output and also reduces the operation voltage to 10V (min) against the 15V (min) of Toshiba’s existing products[１], which can contribute to higher system efficiency and lower power consumption. Furthermore, the 2.3mm low-height SO6L package can contribute to the development of thinner and smaller systems. Main applications include servo amplifiers, small motor drivers, general-purpose inverters, photovoltaic (PV) inverters and industrial sewing machines.
Main Specifications
(Isolation Voltage, Common-mode Transient Immunity: @Ta = 25 degrees Celsius,
Other Specs: @Ta = -40 to 110 degrees Celsius)
| Part Number | TLP5771 | TLP5772 | TLP5774 |
|---|---|---|---|
| Package | SO6L | ||
| Peak Output Current | ±1.0 A | ±2.5 A | ±4.0 A |
| Operation Voltage Range | 10 to 30 V | ||
| Threshold Input Current | 2 mA (max) | ||
| Supply Current | 3 mA (max) | ||
| Propagation Delay Time | 150 ns (max) | ||
| Propagation Delay Skew | 80 ns (max) | ||
| Rail-to-Rail output | Equipped | ||
| UVLO Function | Equipped | ||
| Creepage / Clearance Distance | 8 mm (min) | ||
| Isolation Voltage | 5,000 Vrms (min) | ||
| Common-mode Transient Immunity | ±35 kV/μs (min) | ||
| Operation Temperature Range | -40 to 110 degrees Celsius | ||
| Examples of Applicable Power Devices | Small-scale IGBTs (up to 20 A) and MOSFETs | Mid-scale IGBTs (up to 80 A) and MOSFETs | Mid-scale IGBTs (up to 100 A) and MOSFETs |
Notes
[1] Toshiba’s existing products: TLP5751, TLP5752 and TLP5754
