Continuing to push forward with further technological innovations, Harwin has significantly extended the scope of its award-winning Gecko Screw-Lok (Gecko-SL) 1.25mm pitch connector solutions – which are mainly targeted at avionics, space, military and autosport deployment.
To present engineers with greater design flexibility, and ensure that mating procedures are made as straightforward as possible, a reverse fix orientation has now been made available for the robust and reliable stainless steel screw-loks incorporated into each Gecko-SL. Here it is the male connectors that serve as the floating fixings and screw into the female connectors – as opposed to conventional Gecko-SL systems, where it is the female connectors that have the floating fixings.

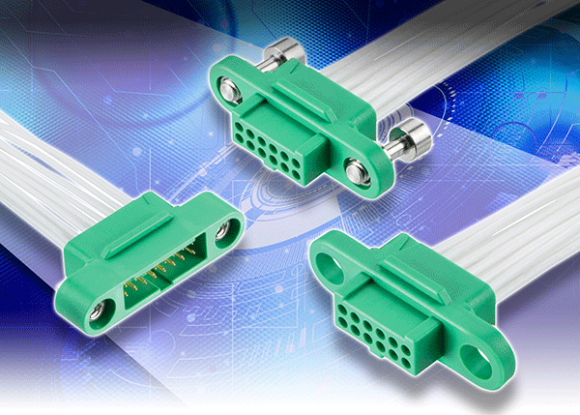

The Gecko-SL Reverse Fix is available on both male and female cable housings. For this version, the female connectors can be used in a panel-mount arrangement, with a threaded stud positioned on the rear of the screw-lok. Slotted nuts and hexagonal nuts are both available separately. Surface mount and through board PCB versions of both male and female connectors are also available, with the threaded stud on the female connectors for board mount strain relief.
In addition, Gecko-SL products are now supported by a range of ready-to-use cable assemblies – covering a broad spectrum of customer requirements. Both male and female single-ended versions are offered, and double-ended male-to-male, male-to-female and female-to-female arrangements, with the possibility for numerous different pin counts and cable lengths to be specified.
Finally, to fill out the existing range of Gecko-SL, there are additional screw-lok options being added for the male cable connectors (now with panel mount) and male PCB connectors – surface mount and through board – now without board mount studs.
As Ben Green, Head of New Business Development at Harwin, explains, “The incredibly positive reception that we’ve had from the market for Gecko-SL over the last 18 months has driven us to further expand the portfolio so that we can address even more opportunities for this compact, highly resilient connectivity solution. By providing Gecko-SL connectors with cable assemblies, customers won’t have to concern themselves with the engineering challenges of adding the accompanying cabling themselves – such as tooling, training staff, testing, establishing processes and suchlike – as it is all done for them,” he continues. “Furthermore, the reverse fix versions also added mean that engineers can specify the mating characteristics that best suits their application demands.”
