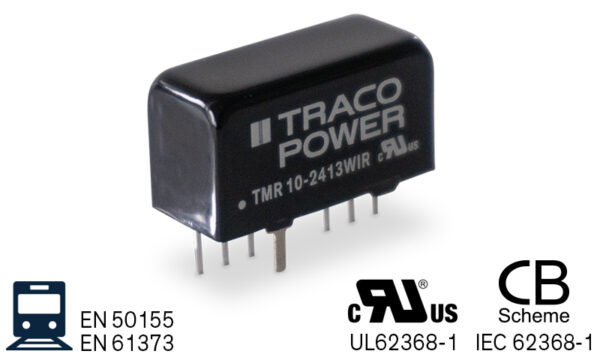

TMR 10WIR series Compact 10 Watt railway approved DC/DC converter with wide 4:1 input voltage range

• Compact SIP-8 metal case
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behavior according to EN 45545-2
• Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC
• Operating temperature range –40°C to +75°C without derating
• I/O-isolation 3‘000 VDC
• High efficiency up to 89%
• Protection against overload, and short circuit
• Remote On/Off function
• 3 year product warranty

The TMR 10WIR series is a family of ruggedized 10 Watt DC/DC converters for highest reliability in harsh environments. The converters have a wide 4:1 input range and increased resistance against electromagnetic interference, shock/vibration and thermal shock and come in a SIP-8 metal package. The innovative design provides high efficiencies up to 89% and thus enable an operating temperature range from -40 up to +75°C without derating. The approvals according to standards EN 50155 and EN 61373 qualify them for railway and transportation systems. Additional qualification for the fire behavior of components according to EN 45545-2 and the safety approval according to IEC/- EN62368-1, UL62368-1 support a potential compliance test of the application. Built-in features like input under-voltage-lockout, short circuit protection and remote On/Off make this series suitable for almost any application demands and thus facilitate the design-in process.

URL landing page: https://www.tracopower.com/int/tmr-10wir

URL video: https://youtu.be/mrFalHc07-8?si=HDvDSJ7isWuG0mOt

For further information and reader enquiries:

Traco Electronic AG, Sihlbruggstrasse 111, 6340 Baar, Switzerland

Tel:       +41 43 311 45 11                      E-mail:  info@tracopower.com

Fax:      +41 43 311 45 45                      Web:    http://www.tracopower.com
