Suitable for high power applications

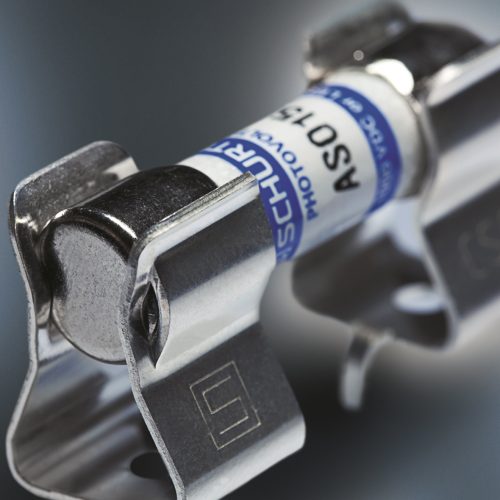

SCHURTER, a leading supplier of fuseholders, is expanding its high-performance fuse clips of the CSO family for 10.3 mm diameter fuses with an M5 version for screw and rivet mounting. Thanks to its excellent material properties, the CSO clip is suitable for applications with voltages up to 1500 VAC/VDC and currents up to 32 A.

Due to the use of a special copper alloy, all versions of the CSO series are characterized by a strong clamping force. This results in minimal power dissipation, which is particularly essential for applications with high currents where power losses must be minimized wherever possible.

Ideal for E-Mobility

The CSO clip offers a very wide range of applications. With a typical contact resistance of ≤ 1 mΩ it is also ideally suited for use in e-mobility charging stations (AC and DC) and other high-current applications.

Even more flexibility

The addition of an M5 mounting version to the CSO family significantly increases flexibility in a wide range of applications. Thanks to this, the proven CSO clips are now suitable for additional applications where, for example, fastening with M5 screws is required.

Unique Selling Proposition

 – Special copper alloy material for high efficiency

 – Very low contact resistance

 – Minimal power dissipation due to strong clamping force

 – Ideal for use in high power applications like EV-charging
