Toshiba Launches Compact, Low Power, High Resolution Micro-stepping Motor Driver IC

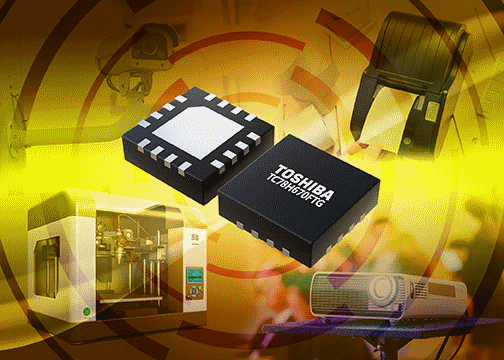

Irvine — February 7, 2010— Toshiba America Electronic Components, Inc. (Toshiba) has launched “TC78H670FTG,” the latest addition to its line-up of micro-stepping motor driver ICs. The new IC has a maximum rating of 18V/2.0A¹ and can drive motors with a wide range of operating voltages. Mass production starts today.

The new IC can drive a 128 micro-stepping motor with a power supply ranging from 2.5V to 16V. Its wide range of applications includes USB-powered, battery-powered, and standard 9-12V system devices, and it can also be used with a 1.8V interface, allowing connection to various hosts and microcontrollers.

Toshiba’s newest² DMOS process ensures that TC78H670FTG realizes excellent figure-of-merit low ON resistance. The process also contributes to the IC’s ultra-low standby current. The IC is housed in a compact QFN16 package and eliminates use of a current sense resistor by incorporating a current detection part that contributes to lower cost, a smaller component footprint, and PCB routing space savings.

Features

•  Compact package (QFN16 3.0mm×3.0mm)
•  Low ON resistance (Ron=0.48Ω @VM=12V)
•  Low to medium voltage range 2.5V to 16V with interface of 1.8V to 5.0V
•  Ultra-low standby current of 0.1µA
•  Operates motors smoothly and quietly and reduces vibration; improved rotation angle accuracy³ achieved by micro-stepping control.

Applications

Cameras, security cameras, portable printers, handheld scanners, pico-projectors, and smartphones
